M400
Pick and Carry
Technische specificaties

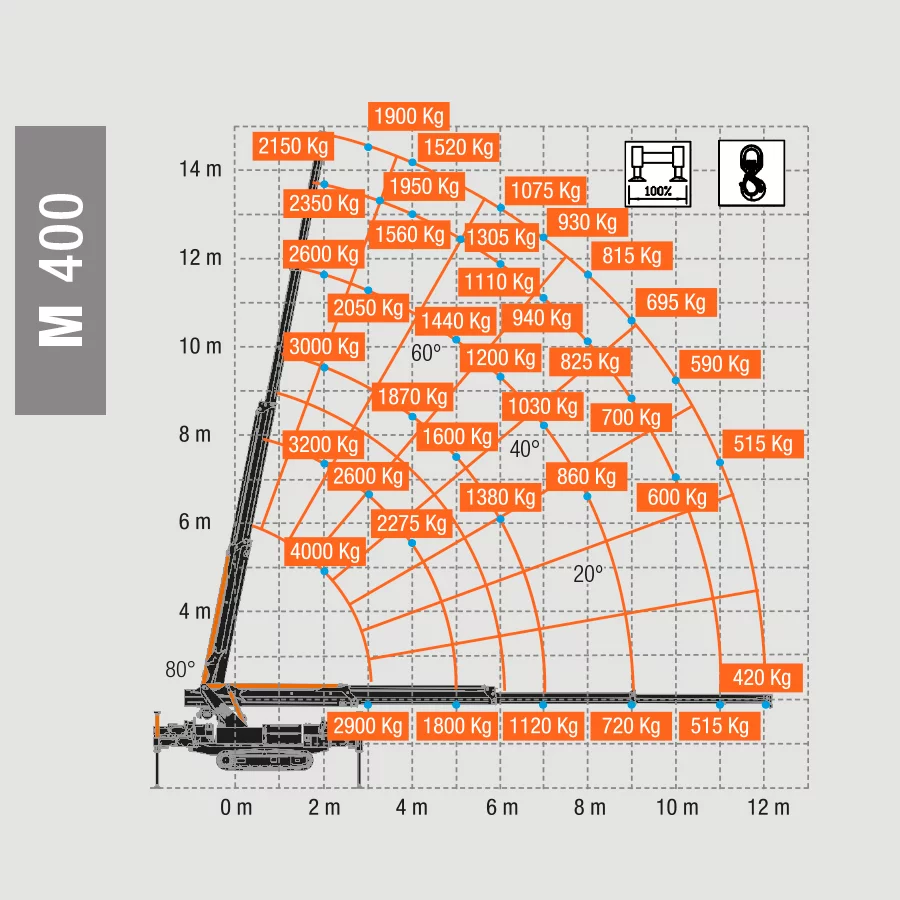

Hijscapaciteit | 4.000 Kg / 2 m | |
Horizontaal bereik | 12,10 m | |
Horizontaal bereik | 17,00 m | |
Max. hijshoogte | 14,80 m | |
Max. hijshoogte | 21,10 m | |
Zwenkbereik | Continu / 1 rpm | |
Lier (optioneel) | Capaciteit 1000 Kg Kabel lengte 58 m Snelheid 46 m / min. |
|
Radiografische afstandsbediening | Scanreco Can-Bus + Display | |
Stabiliteitscontrole | Elektronisch | |

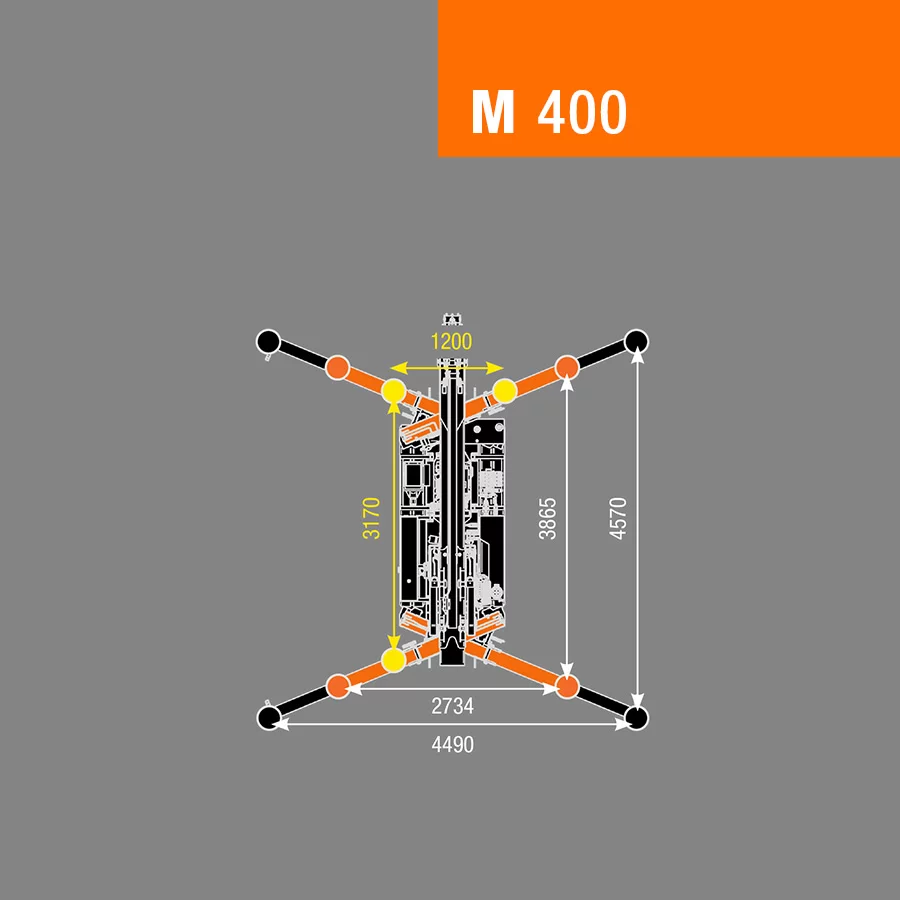

Stabiliteitssysteem | Eindeloze posities – Max 4490×4570 | |
Gewicht | Standaard kraan: 4300 Kg Jib : 230 Kg Elektromotor: 40 kg Lier: 65 kg Afneembare ballast (Pick & Carry): 300 kg |
|
Rupsonderstel | Transmissie: motorreductor Scope: 55 l/min Druk: 200 Bar Snelheid: 0 – 2 Km/h Max. Hellingsgraad: 25° Gronddruk: 0,41 Kg/cm² |
|
Diesel motor | Merk: Yanmar Model: 3TNV76 Motorvermogen: 18.9 kw – 25.7 PK Koppel: 64 Nm Tankinhoud: 25 l |

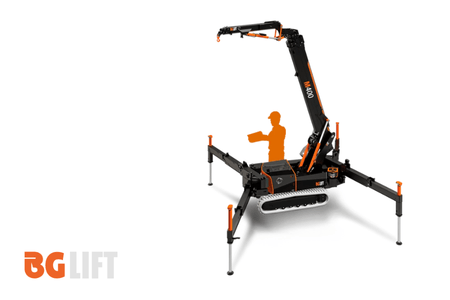

PICK AND CARRY MINIHIJSKRAAN
De Sankoo Bg Lift M400 een unieke Pick and Carry minihijskraan. Een compactkraan waarvan de kracht/gewicht ratio nog nooit is gezien. De dwarsbalken zorgen voor een geavanceerde stabilisatie. Deze compacte kraan is uitgerust met de meest innovatie technologieën.
Standaard uitgevoerd met:
- Radiografische afstandsbediening with display for crawler, chassis and crane function.
- Continu rotation
- Predisposition for winch Installation
- Predisposition for Jib Installation
- Outriggers continuous variations Control system
- Automatic stabilization
- Two Snelheid Crawler Translation
- Engine Manual Rpm increment
- N° 4 Lifting Connections
- Elektronisch Limiting Device
- Auto diagnostic• Crane Color Black RAL 9005
- Cylinders color orange
- According To EN13000
- Smart Stability Control(SSC)
- BG Connect
Optioneel:
- 1000 Kg hydraulic winch
- Lowered hook connections
- Fourth, third line pull pulleys
- Plates for outriggers
- N° 4 Working LED lights on the crawler
- Working LED lights on the boom and Jib
- Hydraulic Jib with opening up to 195°
- Three phases electric engine 5,5 Kw/400 V
- Automatic engine rpm increment
- No marking rubber pads
- Two man basket capacity CE
- LED lights for outriggers
- Green oil
- Automatic closing
